Lot 462:
Description

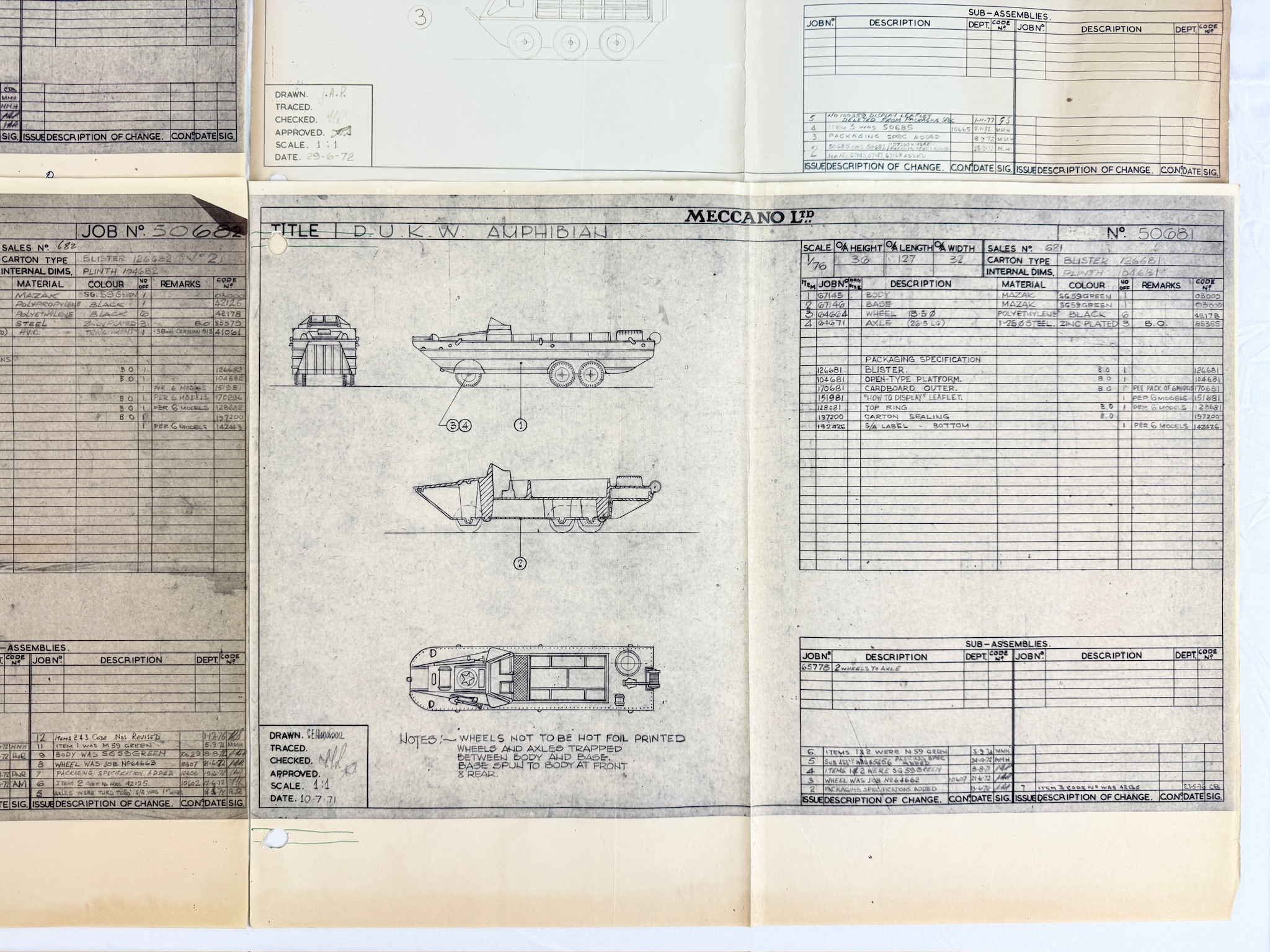

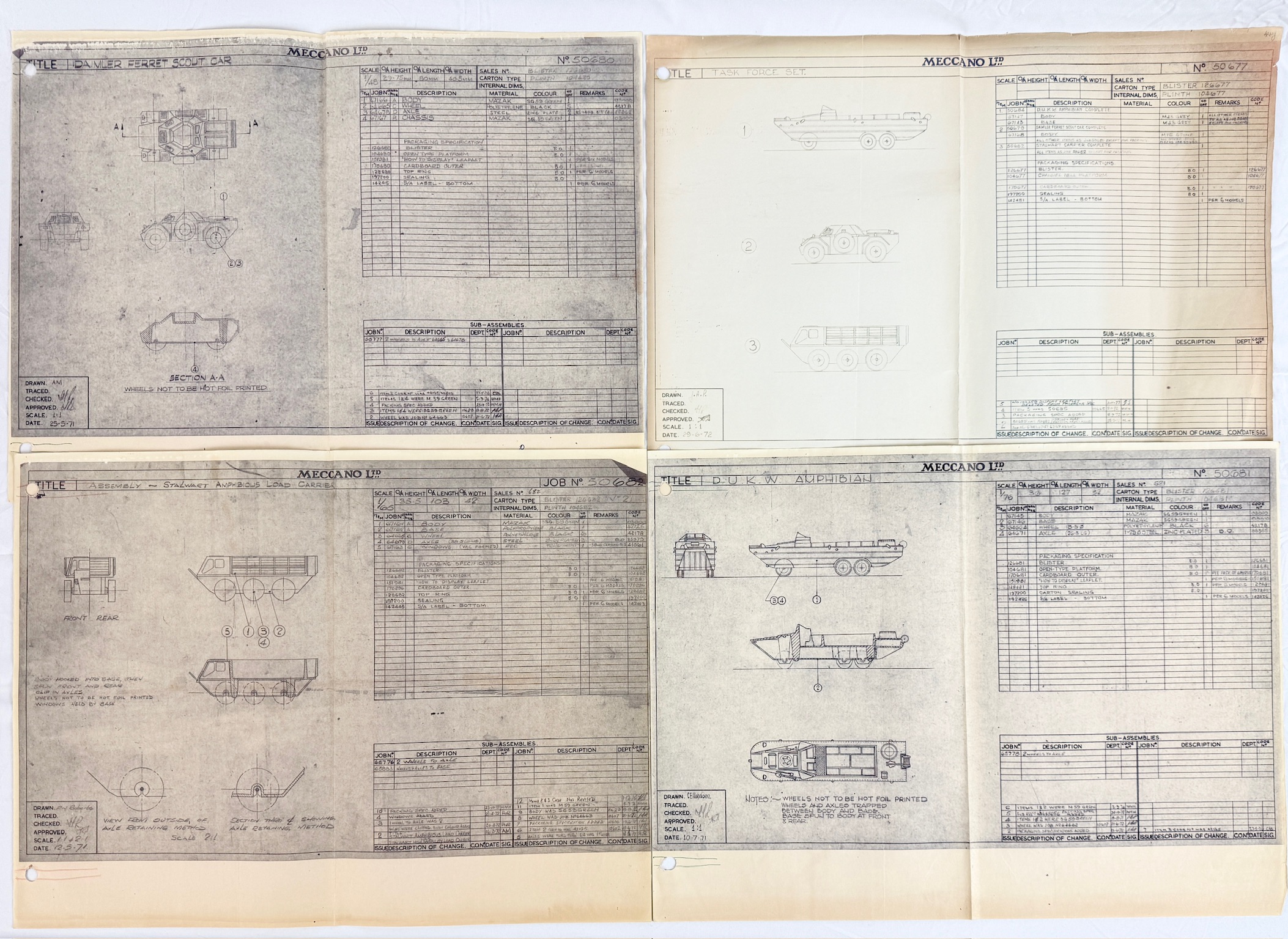

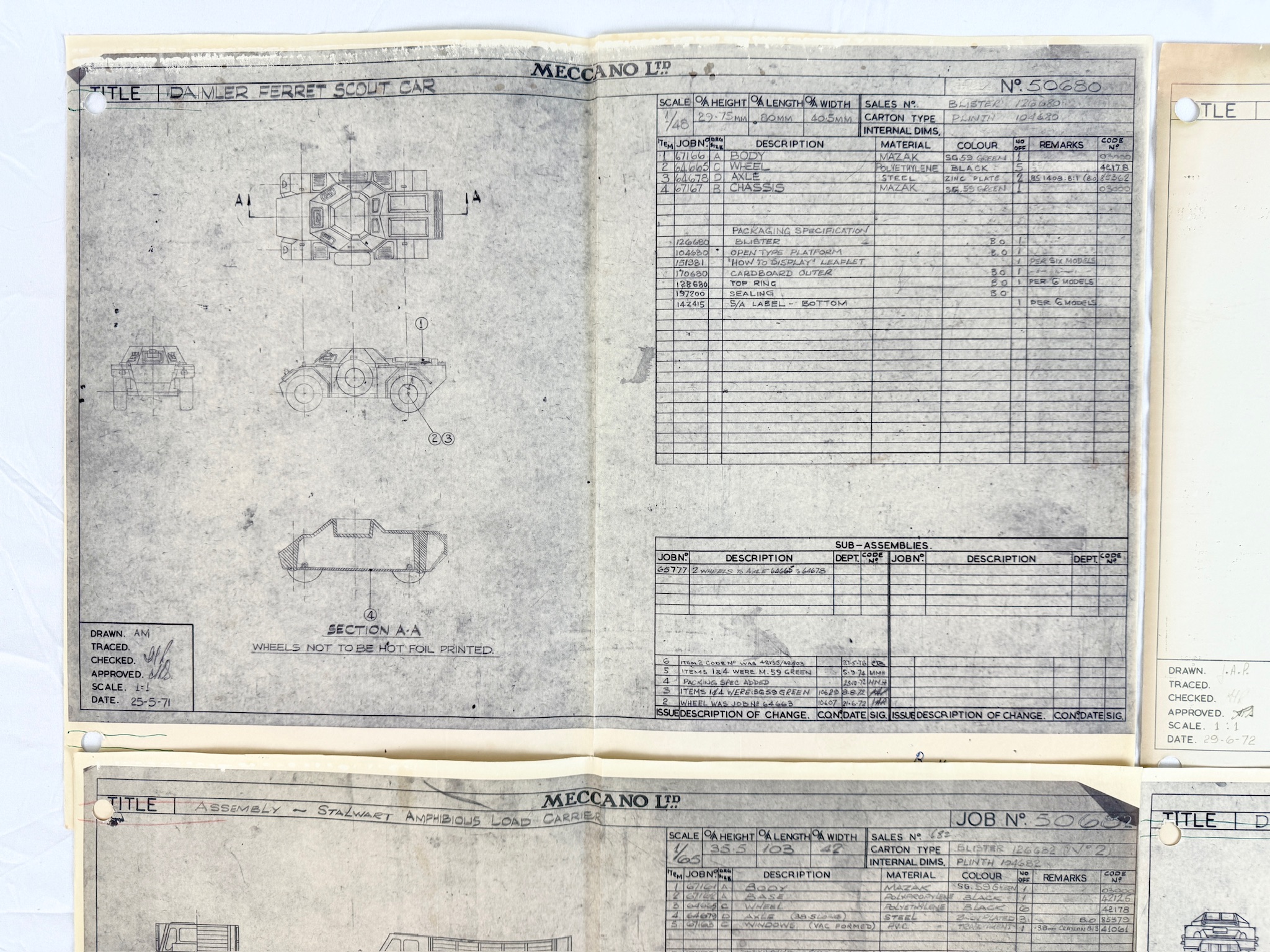

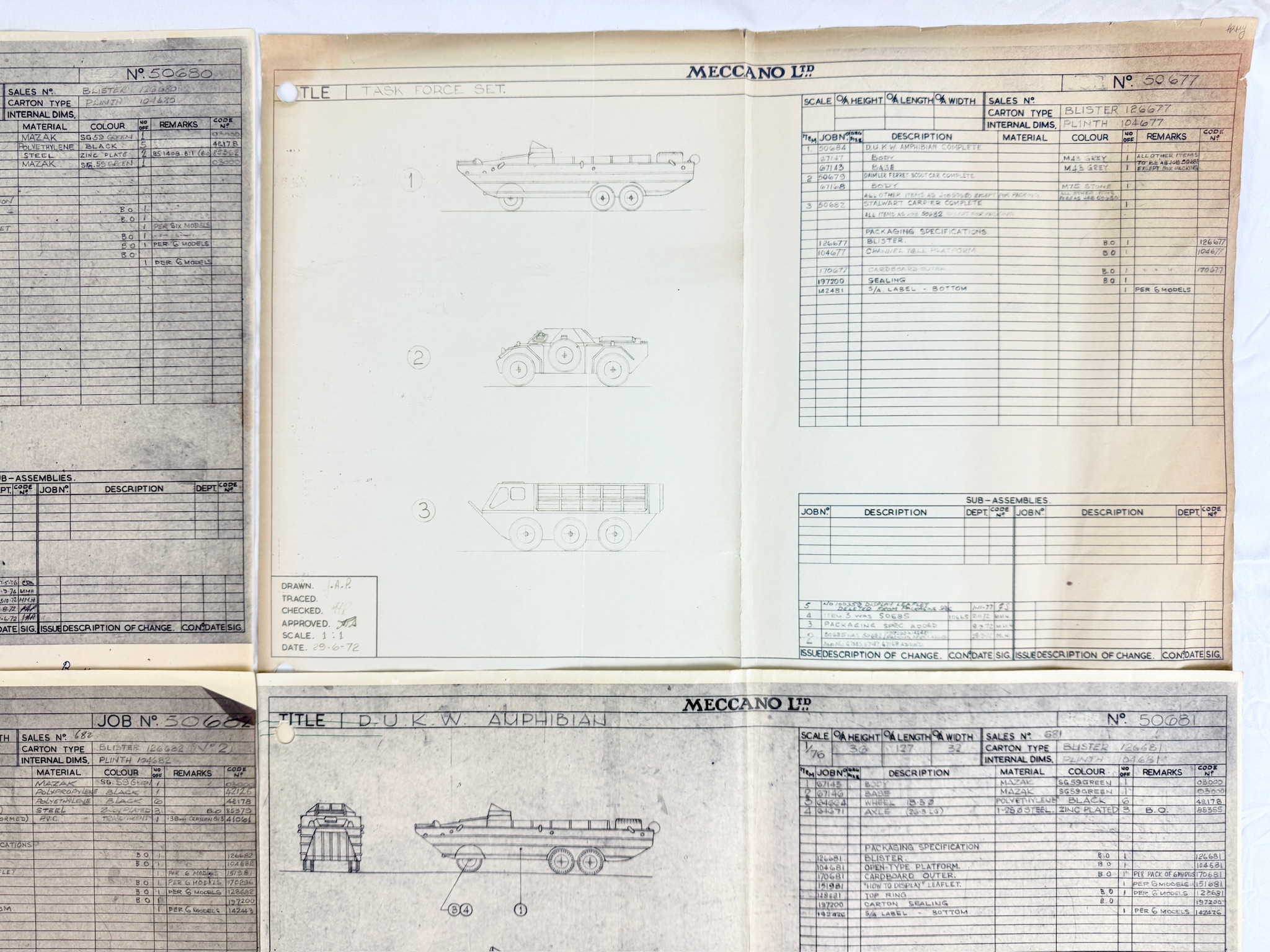

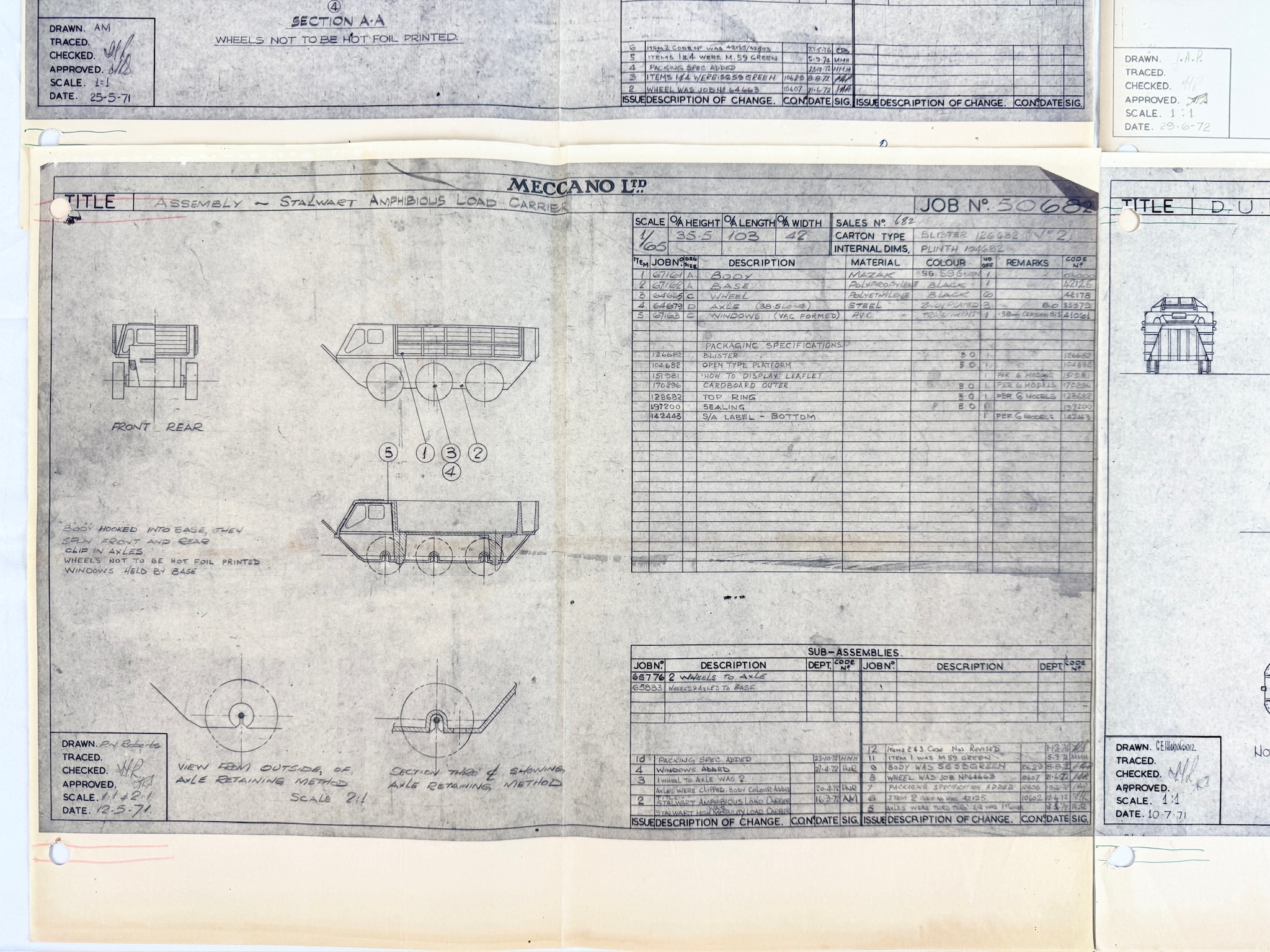

This collection of original factory technical drawings by Meccano Ltd. dates from 1971 to 1972 and features designs for miniature military vehicles including the Daimler Ferret Scout Car, Stalwart Load Carrier, and D.U.K.W. Amphibian. Each document is executed on aged paper with official company headers and includes detailed plan, elevation, and section views alongside comprehensive tables for components and materials such as Mazak and polyethylene. The sheets contain specific job numbers, drafting signatures, and production notes regarding assembly methods and packaging specifications for the miniature toy line.
Each sheet approximately 16.5 x 23.5 inches
Total weight approximately 0.5 lbs.
Weight: 1 LB
Measurement: 24 x 17 IN
Depth: 2
Condition report:
C8
